Product introduction
As a new generation of chain electric hoist, the new Chinese chain electric hoist is built with modular, lightweight and integrated design concept and is featured with compact structure, excellent performance, safety and reliability, energy saving an
Independent design
Modular design
Intelligent
Compact design
environment protection
Safety design
Product Details:
The new Chinese chain electric hoist adopts a square box integrating electric box, motor, reducer, brake and overload limiter. For the square box, the body is made of die-casting aluminum alloy, the chain is wear-resistant and has high strength, and the hook group uses compact high-strength hook group.

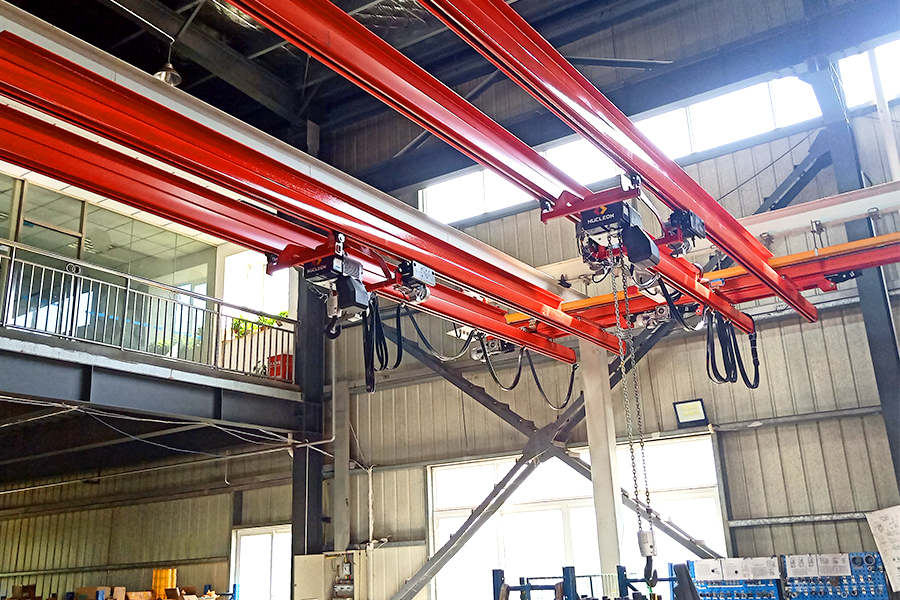

The new Chinese chain electric hoist can be matched with electric single beam/suspension crane, flexible rail crane, rigid rail crane and jib crane.
Product Features:
(1)Compact structure and small limit of size.
(2)Double speeds and stable lifting and lowering.
(3)Smooth running and convenient operation.
Silent drive, low noise and environmental protection.
Performance parameters:
Lifting capacity: 0.25t～2t
Lifting height: 3m～100m
Work level: M3～M5
Ensure that the crane moves slowly and accurately as it approaches its destination. This function can be applied to hoisting mechanism, trolley and crab. Inching movement can be set as required.
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading. This function can be applied to hoisting mechanism, trolley and crab.
"Zero speed hover" function automatically starts to prevent slip hook when the control system detects the slip hook trend (the motor does not rotate when the brake is opened).
Our cranes are all equipped with functions of upper pre-limit, upper limit, top impact-proof?limit impact-proof of the crane, which meets various needs of customers for products.
Crane can automatically limit the sway of the loader in the process of handling, realizing faster handling and more accurate positioning, and to be stable during the handling process.
Cranes are equipped with hazardous area restriction function, which can reduce the dangerous situation during loader movement, and prevent the damage of the loader, crane and surrounding area facilities.
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
The crane can monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed, ensuring the efficiency and quality of the crane.
When multiple cranes lift a loader at the same time, the position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
A wireless module can be added to the crane to connect to the Crane Industrial Internet Platform, realizing the full life cycle management of the crane.
